Wingtips page 5

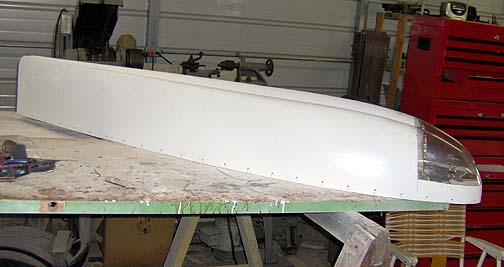

Here is a side view of the wingtips full length, to give you an idea of the overall size of the wingtip lights and lenses:

Next the wingtips were prepped for primer and paint.  They were mounted to the wings for painting since the red stripe goes across the wingtip.

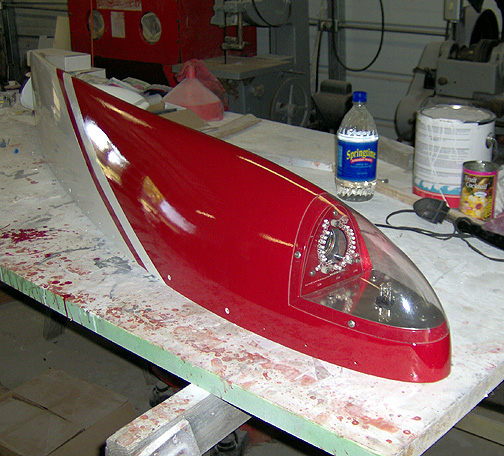

Here is the completed right side wingtip after paint:

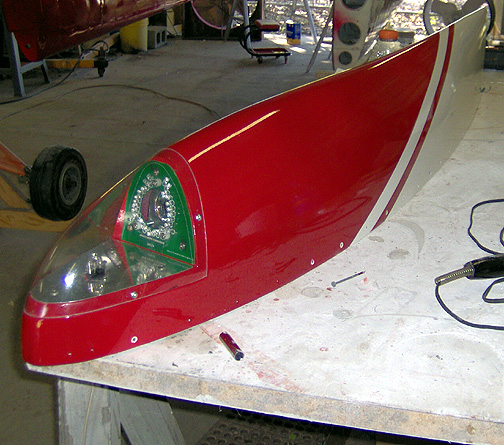

Here is the left wingtip after paint:

Wingtips (including lights)

Completed: October 26, 2007

Total Time:  34 hours
